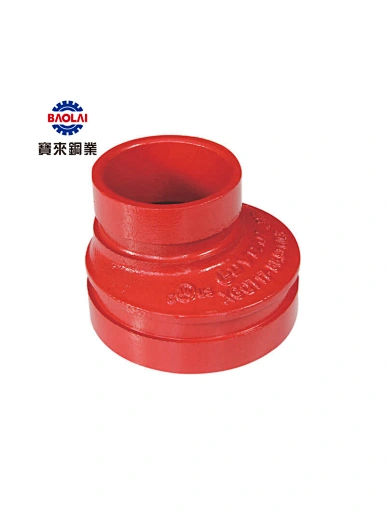

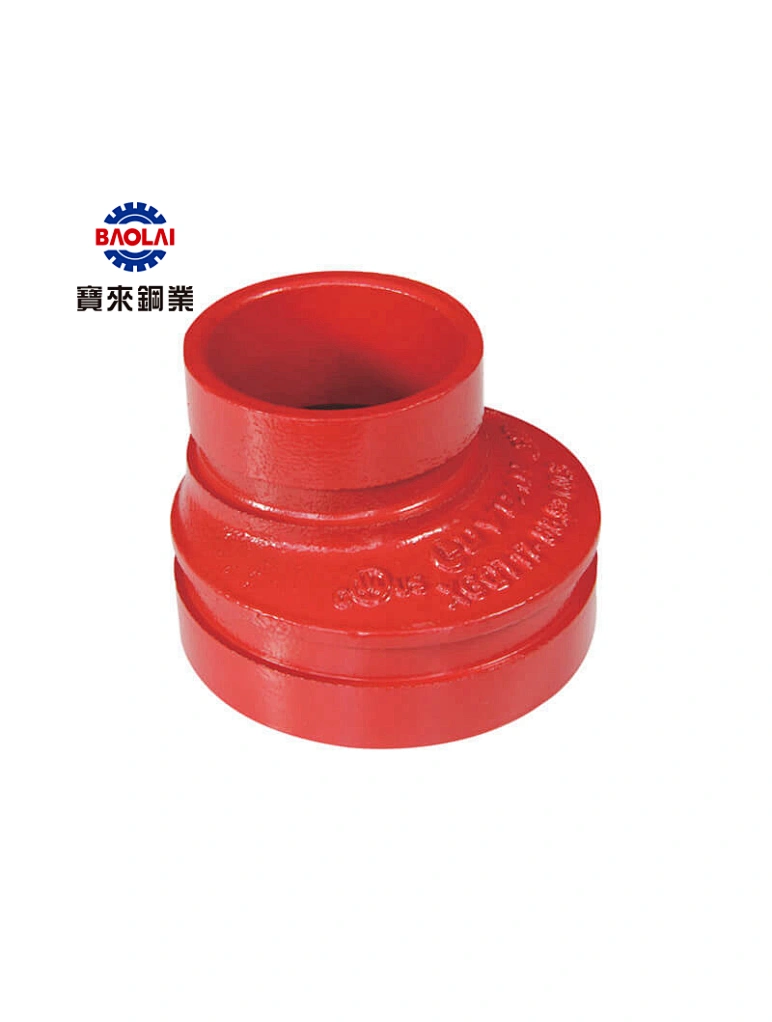

Grooved eccentric reducer pipe fittings

Model NO. Grooved eccentric reducer

Certificate: UL Listed / FM Approved

Standard: ANSI / UL 213C

Material: Ductile iron ASTM A536, 65-45-12

Rated pressure: ≥ 175 psi (1.21 MPa)

Surface: Red painting / hot dip galvanized

Quantity

These pipe fittings allow for smooth and efficient flow control in pipeline systems with varying pipe sizes.

Introducing our Grooved Eccentric Reducer Pipe Fittings, designed for seamless flow control in pipeline systems with varying pipe sizes.

Featuring a grooved end connection for quick and easy installation, our fittings reduce turbulence and pressure loss, resulting in better flow efficiency and reduced energy consumption.

Made from high-quality materials and designed for durability, they are suitable for a range of industries such as fire protection, and plumbing.

Solving the issue of non-standard pipe sizes and the need for separate couplings, our fittings bring cost-effective and reliable solutions to your piping needs.

Trust our Grooved Eccentric Reducer Pipe Fittings for a smooth and efficient pipeline system today.

Size (Inch / DN / mm)	End to end (mm), Short	End to end (mm), Long	Ref. No.
3″ x 2″ / 80 x 50 / 88.9 x 60.3	64	89	G1501
3″ x 2-1/2″ / 80 x 65 / 88.9 x 73.0	64	/	G1502
3″ x 2-1/2″ / 80 x 65 / 88.9 x 76.1	64	/	G1503
4″ x 2″ / 100 x 50 / 114.3 x 60.3	76	102	G1504
4″ x 2-1/2″ / 100 x 65 / 114.3 x 73.0	76	/	G1505
4″ x 2-1/2″ / 100 x 65 / 114.3 x 76.1	76	102	G1506
4″ x 3″ / 100 x 80 / 114.3 x 88.9	76	102	G1507
5″ x 2-1/2″ / 125 x 65 / 139.7 x 76.1	89	/	G1508
5″ x 3″ / 125 x 80 / 139.7 x 88.9	89	/	G1509
5″ x 4″ / 125 x 100 / 139.7 x 114.3	89	127	G1510
6″ x 2-1/2″ / 150 x 65 / 165.1 x 76.1	102	/	G1511
6″ x 3″ / 150 x 80 / 165.1 x 88.9	102	140	G1512
6″ x 4″ / 150 x 100 / 165.1 x 114.3	102	140	G1513
6″ x 5″ / 150 x 125 / 165.1 x 139.7	102	140	G1514
6″ x 3″ / 150 x 80 / 168.3 x 88.9	102	140	G1515
